INTRODUCTION

 I put this book together because I wanted to give people like you an easy way to visualize themselves in tiny houses. My intent is that this book will help you find a tiny house

Tiny house making purpose   low cost. ezi transportation, fast construction

Some of you will also be glad to know that people with no desire to build a house themselves have successfully used building plans as a guide that they can hand over to contractors to do it for them.

So letʼs get right into it.

DESIGN & PLANs

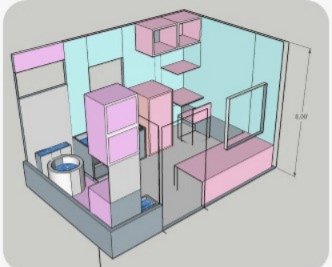

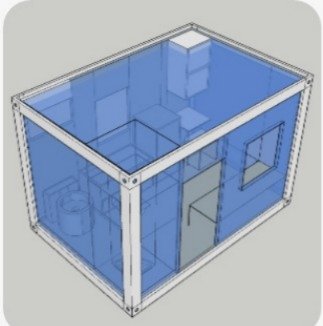

                 Google Sketchup design

                                                         Tiny house size

                                                 1) W 10feet x L 10feet x H 8feet, 100 FQ

                                                     Bathroom size 3 feet x 6 feet.

                                                 2) W 12feet x L 8feet x H 8 feet, 96 FQ

                                                     Bathroom size 3 feet x 6 feet.

TOOLS

1. Basic Safety Equipment

Safety is the foundation of any successful construction project. Having protective equipment not only prevents injuries but also ensures you work comfortably for long hours.

  • Safety Glasses: Protects your eyes from debris when using power tools like saws and drills. Choose glasses with anti-fog coatings for clear vision even in changing temperatures.
  • Ear Protection: Power tools can reach unsafe noise levels, causing long-term hearing damage. Earplugs or earmuffs help preserve your hearing while staying comfortable during extended use.
  • Work Gloves: Essential for handling rough materials like wood and metal. Look for gloves with padded palms for comfort and a firm grip, allowing for easier handling of tools.
  • Dust Masks or Respirators: When cutting wood, installing insulation, or using certain finishes, you’ll need protection against dust and chemicals. Dust masks are suitable for most tasks, but a respirator is essential for painting and other work with strong fumes.

Pro Tip: Keep your safety gear organized and easily accessible so that you can grab it as soon as you start working. It’s easy to skip safety steps when gear isn’t within reach!

2. Measuring and Layout Tools

  • Tape Measure:
  • Laser Level:

3. Power Tools

  • Circular Saw:,
  • Drill/Driver:
  • Welding machine
  • Hand drill machine
  • Hand Cutter
  • Pipe cutter

4. Hand Tools

  • Hammer:
  • Screwdrivers:
  • Chisels:
  • Pry Bar:
  • Utility Knife:
  • Impact Driver:

6. Plumbing and Electrical Tools

  • Pipe Wrench:
  • Pliers:
  • Wire Strippers:
  • Voltage Tester:
  • PVC Cutter:,

7. Insulation and Finishing Tools

  • Staple Gun:
  • Insulation Knife:
  • Putty Knife:
  • Sandpaper and Sanding Block:
  • Paintbrushes and Rollers:

8. Ladders and Scaffolding

Proper equipment for reaching high areas ensures you can safely work on roofs, install fixtures, and paint.

  • Extension Ladder:
  • Step Ladder:
  • Portable Scaffolding:

BULDING MATERIALS

TINY HOUSE MATERIALS – THE BASICS

  • Framing – W 10’ x L 10’ x H 8’   8 nos
  • Frame paler 8’ 4 nos
  •  Windows – 4’ x 3’   2 nos
  • Front Door 3’ x 7’   2nos
  • Roofing – metal sheet 3’x 10’   4 nos
  • Insulation – rapicon cement 50mm x 8’ sheet   20 nos50
  • Screws with Star Drive Head 70mm screws 500 nos 1 box
  • Cement sheet 18 mm 4 nos
  • Pip 1 1/2 4 nos

BATHROOM

LIVING

  • pvc 4’’ pipe  4 nos
  • pvc 3’’ pipe 1 nos
  • pvc 2’’ pipe 1 nos
  • upvc 1/2’’ 1 nos
  • upvc T 4 nos
  • pvc 4 way section 1 nos
  • 4’’ L nos
  • Bathroom outlet 1 nos
  • Commode inlet cock 1/2 ‘’ 2 nos
  • Baralpis  4 nos
  • Shower ½’’ cock 1 nos

              WALL FRAMING

                    Lenth – 10 fit

                     Width- 10 fit

              Fram corner

              Ms 3mm thick x 125

              2mm x 3000mm

             Round head bolt

             M 12,  25mm

WINDOWS & DOORS

 Door – 3 fit x 7 fit

          Door width thickness Depend on wall panel thickness 30mm, 50mm 70mm.

  Windows – 3 fit x 4 fit

              Windows width thickness Depend on wall panel   thickness 30mm, 50mm 70mm.

ROOFING

         3 feet x 10 feet x 0.50

    Waterproof, crack-proof

     6mm thick width 1feet

      Length 10 feet.

PLUMBING

  • pvc 4’’ pipe  4 nos
  • pvc 3’’ pipe 1 nos
  • pvc 2’’ pipe 1 nos
  • upvc 1/2’’ 1 nos
  • upvc T 4 nos
  • pvc 4 way section 1 nos
  • 4’’ L nos
  • Bathroom outlet 1 nos
  • Commode inlet cock 1/2 ‘’ 2 nos
  • Baralpis  4 nos
  • Shower ½’’ cock 1 nos

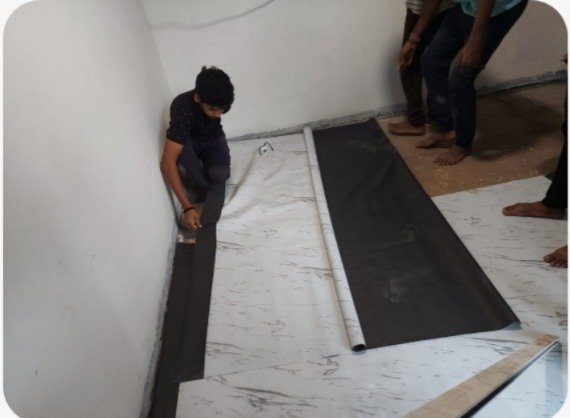

Flooring

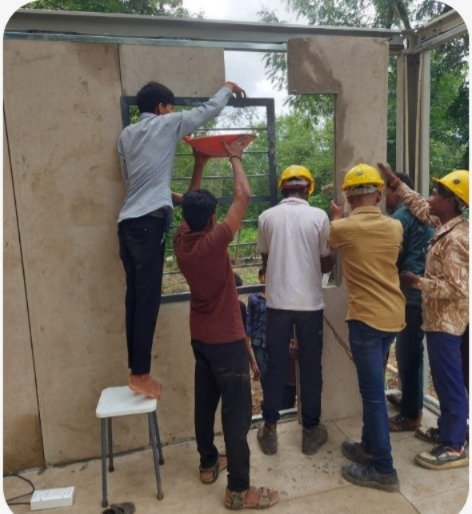

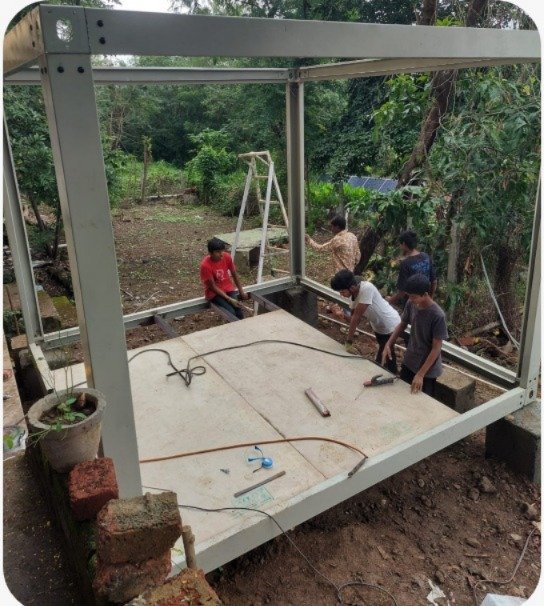

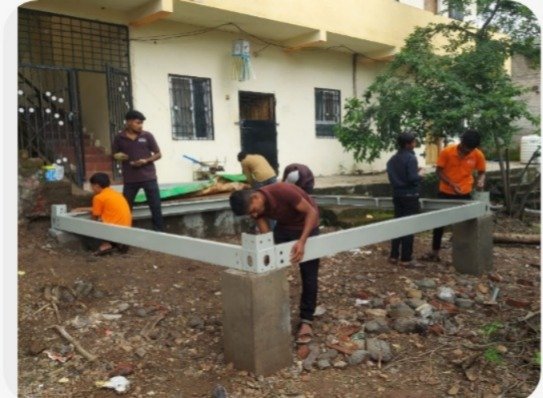

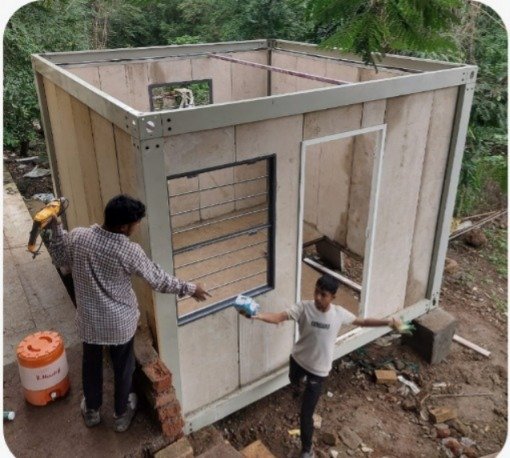

Construction

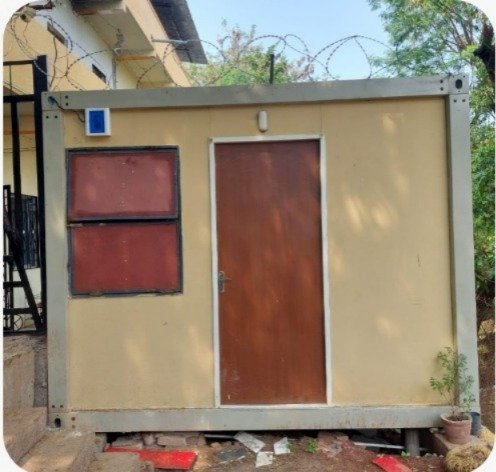

Final Work:

To get the Detail Drawing and cad Details Please Contact Mr. Anil Gadhe Mob- +91 99221 62029/ Email- aanilgadhe@gmail.com
