Introduction
Vigyan Ashram has designed and developed a Tiny House Concept suitable for small families, students, rural entrepreneurs, and disaster-relief or temporary housing needs. This document provides complete design guidance for fabrication and installation of the Tiny House unit. Users can construct their own Tiny House by referring to the design drawings, material specifications, and standard dimensions provided.
Purpose
- To share a standardized, low-cost Tiny House design suitable for rural and semi-urban applications.
- To promote affordable, modular and sustainable housing solutions.
- To make the design available online for local fabricators and entrepreneurs to construct Tiny Houses for their customers.
- To encourage self-construction and skill development in housing fabrication.

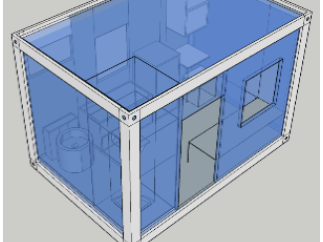

Product Description
The Tiny House unit consists of a structural frame, insulated wall panels, roofing system, flooring platform, ventilation windows, door assembly, and basic utility provisions such as electrical wiring and water connection points.
The structural frame is fabricated using mild steel square tubes, while wall panels are made using insulated sandwich panels / plywood with thermal insulation to maintain indoor comfort. The roofing system is designed to withstand local climatic conditions and provide rainwater protection.

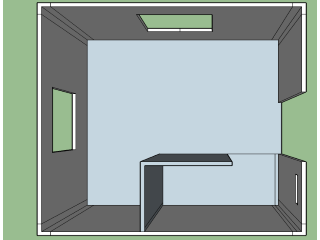

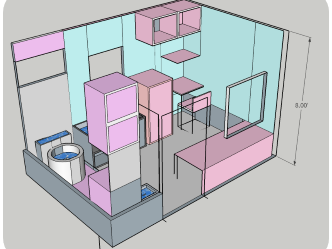

The unit includes provisions for sleeping space, compact storage, workspace / kitchenette area, and ventilation openings for natural light and airflow.
Detailed fabrication drawings and the Bill of Materials (BOM) are provided in the following sections with the Link that take you to More details
Features
- Compact and space-efficient design
- Modular structure – easy to transport and assemble
- Low fabrication and installation cost
- Quick construction time
- Suitable for temporary as well as semi-permanent use
- Expandable design – additional modules can be added
Technical Specifications
| Parameters | Specifications |
| Length X Width X Height | 12 X 8 X 8 ft – 16 X 10 X 10 ft |
| Built-up Area | Approx. 100 to 160 sq.ft |
| Electrical Provision | 2 Lights, 1 Fan, 2 Plug Points |
| Ventilation | Natural ventilation windows / exhaust provision |
| Approximate Weight | 900 kg to 1400 kg |
| Foundation Requirement | PCC blocks |
Advantages & Applications
Advantages
- Affordable housing solution
- Quick fabrication and installation (within 7–12 days)
- Modular and portable structure
- Thermally comfortable due to insulation
- Expandable design (additional modules can be connected)
Applications
- Rural housing and farm stay units
- Site office / temporary office cabin
- Disaster relief shelters
- Security cabins / field monitoring units
- Small entrepreneurship setups (tea stall, shop, clinic etc.)
- Tourism and eco-stay cottages

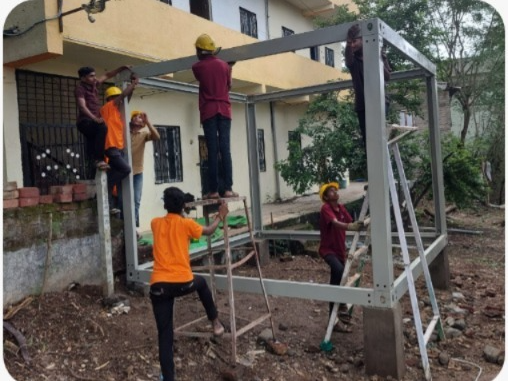

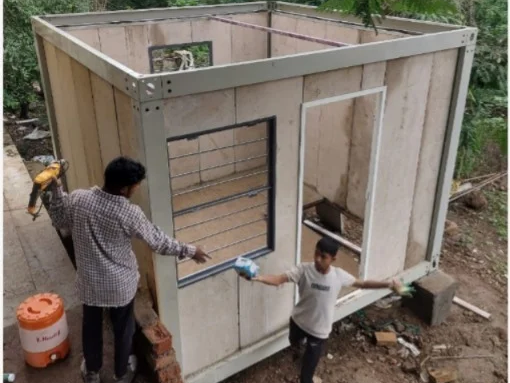

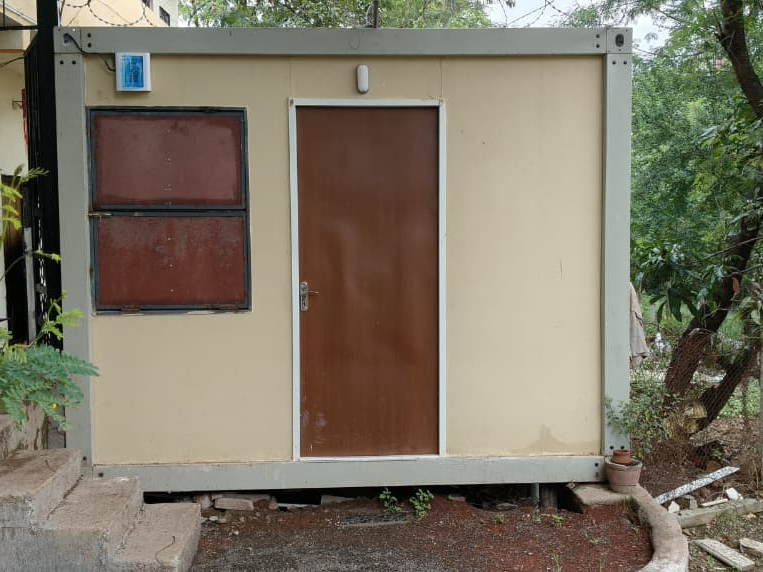

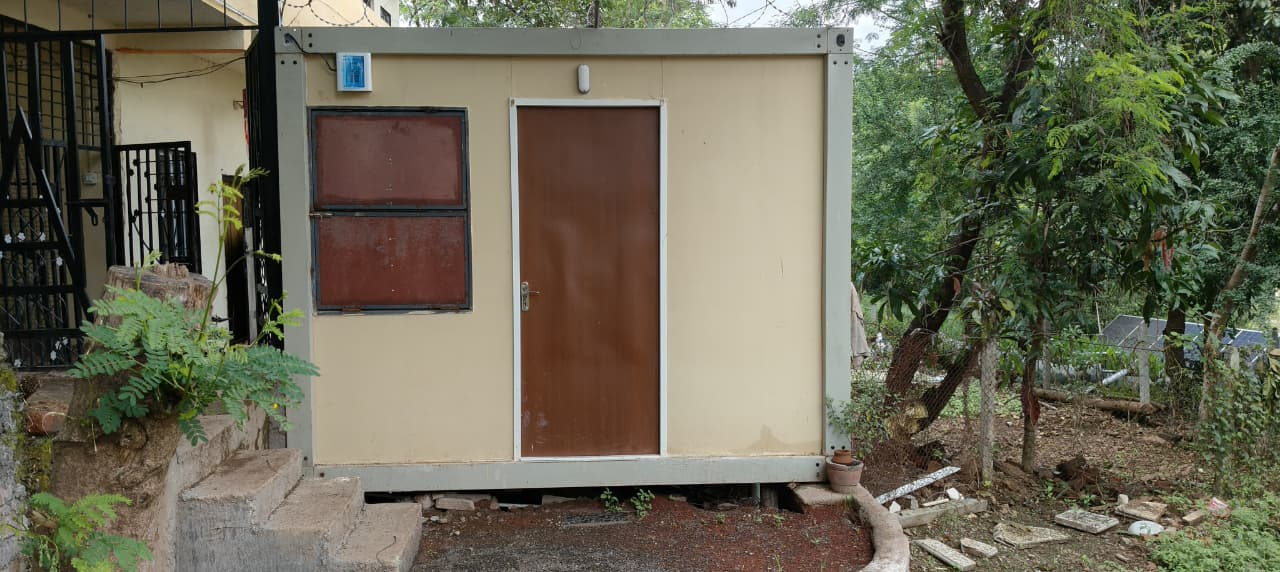

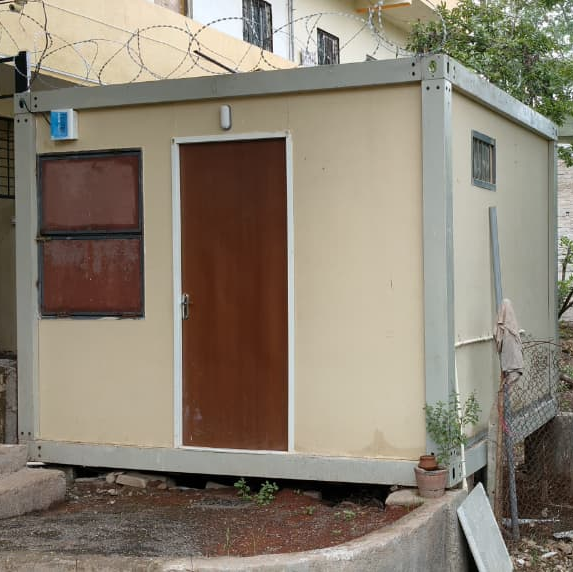

Final Fabricated Tiny House At Vigyan Ashram Campus
Design Availability & Contact Details
The detailed design drawings, Bill of Materials (BOM), fabrication guidelines and assembly instructions for the Tiny House Unit will be made available online for local fabricators, entrepreneurs and interested users.
The Tiny House design files including drawings, BOM and fabrication instructions are available online.
Access Link: Download Tiny House Parts
For further technical details, design access, fabrication support or implementation guidance, please contact:
Mr. Anil Gadhe
📞 Mobile: 9922162029 📧 Email: aanilgadhe@gmail.com
Mr. Abhijeet Pisal
📞 Mobile: 7410101970 📧 Email: vadic.coordinator@gmail.com
Users are encouraged to consult before fabrication to understand site requirements, customization options and cost optimization possibilities.
